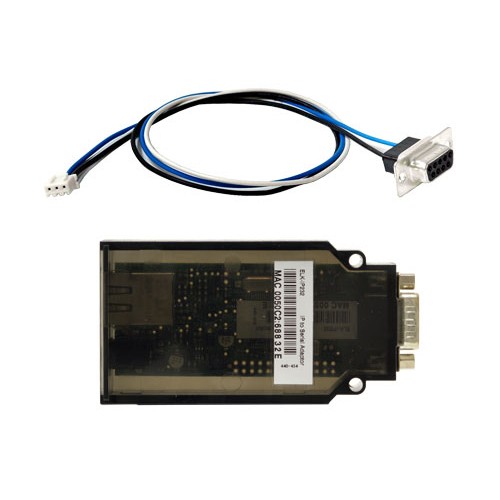

Ness IP Interface Kit IP232 Ethernet to Serial Bridge Bi-Direct

Was 101-244





It may be used to connect any standard serial communications device such as a PC, an audio/video distribution system, or an Ness-M1 Control or Ness D8X / D16X, to an Ethernet network. It allows bi-directional communication between the two. It operates as a network server, which means it does not initiate network connections, but rather, accepts them. The IP232 is required to connect the D8X / D16X to the Ness aComms and iComms Apps or the Ness M1 Touchscreen to the Russound Audio Distribution system.



 Supports both UDP and TCP protocols .

Allows up to twelve (12) simultaneous TCP-IP network connections Up to twelve (12) "Rules" may be programmed to make outgoing connections.

Outgoing connections may be initiated upon power up or when serial activity is detected. They may remain connected indefinitely or for a set time period.

Selectable baud rate from 300 to 115200 baud Supports software handshaking (XON/XOFF) and hardware handshaking (RTS/CTS).

 Multiple Bridges can be used on the same network .

Can be updated in the field with new firmware using the Configuration Utility.

Integrated 802.3 compliant 10/100 Mbit network interface .

RS232, DB9M 9-pin serial port connection.

Connects to the M1 RS-232 Serial port (Port 0).

 RJ45 8-pin Network Jack .

 2.1mm barrel type power connector (center positive).

LED Indicators for Power, Link, and Data









Installation Manual:



http://www.secucam.com.au/images/Ness-ELK-IP232_Installation_Manual.pdf
