Tactical 24Vdc 3A Switchmode Power Supply with Battery Charge

$150.00


Details

  • Model: TPS24-3DC
  • Shipping Weight: 4kgs
  • 4 Units in Stock

Description

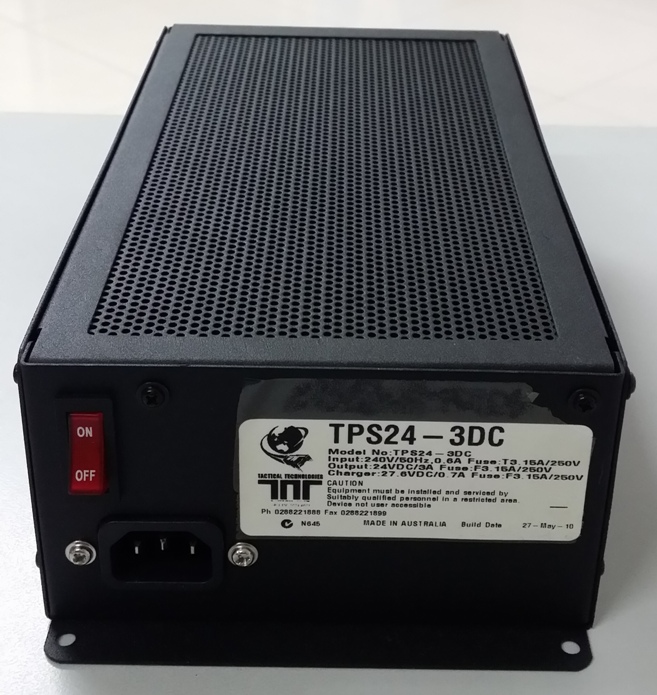

 Tactical Linear TPS24-3DC  24Vdc 3A Switchmode Power Supply with Battery Charger - mounted in large powder coated steel enclosure with 20 x 150mA Fused Outputs

Extremely low noise, high performance switchmode design
Onboard battery charger (0.7A at 27.6V DC) to charge SLA standby batteries
Thermal shutdown, output short circuit and overload protection.
+ AC Fail and Low Battery outputs
+ Powder coated steel enclosure
+ High efficiency design
+ Low thermal load

Specifications:

 Input Voltage: 240 Vac / 50 Hz, 0.6A Fuse: T3.15A/250V
 Input Current : 800mA @ full load
 Output Voltage: 24Vdc /3A Fuse: F3.15A /250V
Charge: 27.6VDC/ 0.7A Fuse: F3.15A /250V
 Output Current : 3A
 Output Channels :1
 Output per Channel: 3A
 Battery Charger: 27.6Vdc @ 700mA Max
 Operating Temp: 0 - 45°C
 Dimensions: 273L x 145W x 80H
 Weight: < 2Kg
Efficiency: 80% Typical
Overload Protection: Constant current limiting, short circuit shutdown, auto recovery
Load Regulation:  < 1% from open to full load
Line Regulation: < 0.2%
Output Ripple:  <50 mVp-p @ full load
 Safety Standards: AS/NZS 60950.1:2003
 EMC Standards: AS/NZS CISPR 11:2004 Class B

Made in Austaralia
