Home :: Intercom and Access control :: Heart Multi-functional on-line Proximity Access Control Reader

Intercom and Access control

Product 22/31

larger image

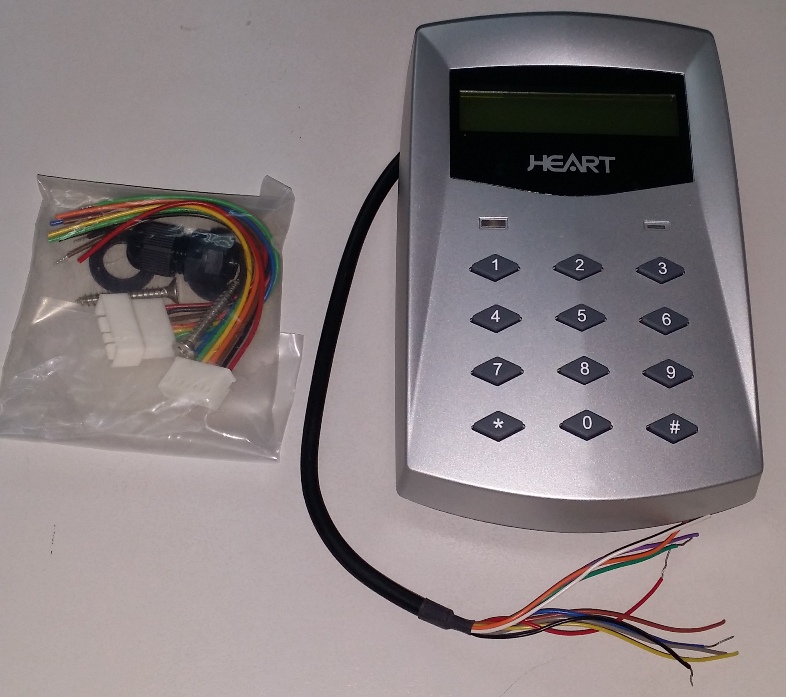

Heart Multi-functional on-line Proximity Access Control Reader

$180.00

Details

Model: HA5035H
Shipping Weight: 3kgs
1 Units in Stock

Description

Heart HA3020 EM Proximity Stand alone reader + HB0312 relay

HA5035
Quick-link Proximity Access Control System

HA5035 is the professional access control system with network configuration for up to 4,096 readers using RS485 or TCP/IP, and with storage capacity of 26,000 users or 26,000 transactions for each reader.

The specification of HA5035 proximity access reader

Model NUmber	HA5035H
Serial Port	RS232,RS485,TCP/IP (Optional)
Reader Type	Proximity
Card Type	EM,HID,TI ISO/IEC15693 MIFARE ISO/IEC14443A(optional)
Transmitting Frequency	125KHz or 13.56 MHz(opional)
Reader Range	125KHz up to 7 cm,13.56MHz up to 5cm (In noise-free environment)
Display	16 characters, 2 lines, LCD with backlight
Keypad	12 keys(0-9,*,#)
LCD Indicator	Bicolor(green/red)
Memory Buffer	500-15,000 cardholders / 11,000-25,500 transactions(adjustable)
Case Material	ABS(ul94V0)fully waterproof
Working Voltage	DC + 10V to 15V
Power Consumption	280mA Max. @12VDC
Dimension(H x W x D)mm	148 x 95 x 34
Dimension(H x W x D)in	5.8 x 3.7 x 1.3
Weight	312g(11.0 oz)
Operating Temperature	0C ~ 50C (32F ~ 158F)
Operating Humidity	5% ~ 95% (relative humidity non-condensing)
Certifications	CE, FCC, RoHs

Characteristics
Proximity type reader, read range upto 7cm
16,000 cardholders/10,000 transactions(adjustable)
Network configuration up to 4,096 devices
Anti pass back
Access mode available
Door left open alarm function
Force entry alarm
Temporary suspend all function
Password time zone restraint
Access mode selectable
1. reading proximity card
2. card data + personal password
3. key in card data
Communication interface:RS232, RS485 and TCI/IP available
Can be used as stand alone device without personal computer connected
Eight groups personal password time zone programmable
Password time zone programmable if card data with passwordaccess salected, for example: use card data in regular time, card data with password holiday
Two types alarm status available
1. Force entry
2. Door not close within a pre-definect time
Device model and version number can be displayed
Card number shown when access succeed
Up to 2 months battery back-up capacity for data storage during power failure
With power saver function, the back light of LED turn off once no there is operation within 3 minutes
The acting time of electric strike, alarm function anti-duress and door not closed alarm can be programmable from 1 to 255 seconds
The way to deactivate the alarm when door not close within a predefined time
Communication baud rate can be programmed via keypad
Four error message available(all records are stored in controlled software)
1. Invaild card
2. Restricted time
3. Time zone unmatched
4. Code unmatched
