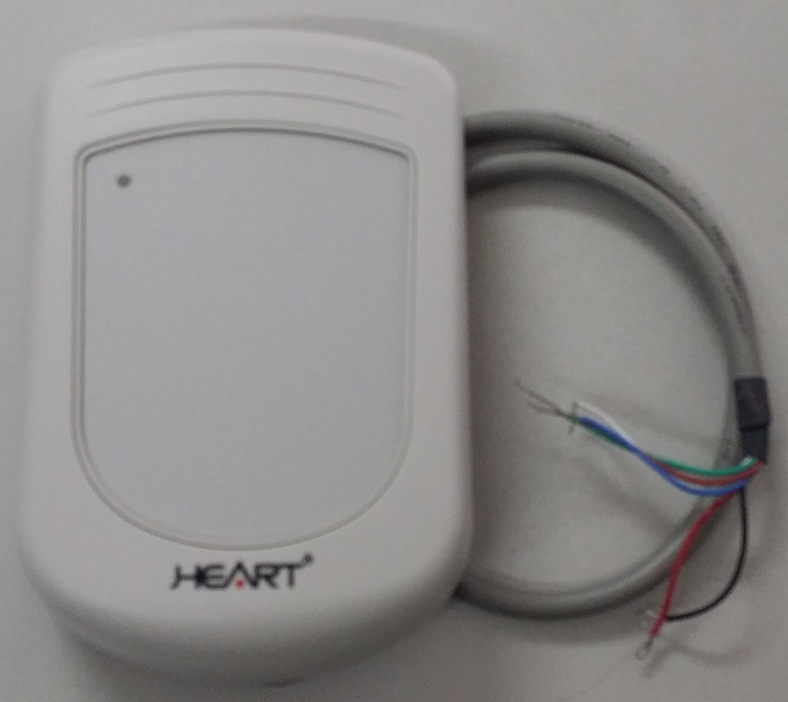

Heart HID Proximity Standard Wiegand Card Reader

$80.00


Details

  • Model: HR310H
  • Shipping Weight: 1kgs
  • 1 Units in Stock

Description

Proximity Standard Wiegand Reader

The HR310 is a Proximity reader. a Bi-color LED and audible tone enhance user feedback. The LED normal state is red when gray wire is high or not connected. The LED turns green when the proximity card is read and the message is transmitted to the Host system. The operation of the LED and beeper may controlled by the Host system the typical time is 200ms.

HR310 is a proximity sub-reader complying with the 26 bits Wiegand format of the international standards. A bicolor (green/red) LED and a beeper offer feedback to users.


The Specification of HR310 Proximity Access Reader
Model Number
HR310 / HR310K
Card Type
EM, Casi Rusco 64 bit standard R/O or compatible, HID, MIFARE 14443A, TI15693 (optional)
Transmitting Frequency
125KHz / 13.56MHz
Reader Range
Up to 7 cm (In noise-free environment)
Keypad (HR310K)
12 keys (0-9, *, #)
Keypad Output Protocol
Rosslare Wiegand 6 bits or Burst Wiegand 8 bits
Output Protocol
EM Wiegand 26/44 bits / Casi Rusco Wiegand 21/41 bits / Serial Output 125K
Indicator
Bicolor LED (green/red)
Case Material
ABS (UL94V-0) fully waterproof
Working Voltage
DC +8.5V to 16V
Power Consumption
Average 50mA; Peak 120mA @12VDC
Dimension (H x W x D) mm
112 x 75 x 23
Dimension (H x W x D) in.
4.4 x 2.9 x 0.9
Weight
250g MAX (8.8 oz. MAX)
Operating Temperature
0℃~70℃ (32℉~158℉)
Operating Humidity
5% ~ 95% (relative humidity non-condensing)


Brand: Heart

Made in Taiwan
